ZPG automatic backwash blowdown filter

Quality stability: the implementation of the whole process of quality control, meticulous, all aspects of detection!
Reasonable price: effective internal cost control, reduce expenses, let the benefit of customers!
Fast delivery: advanced production line, sufficient stock, shorten the delivery time!

sell：021-32051999
sell：021-32050777
fax：021-66099555

Details

Product Introduction
Service Promise
Ordering Process

ZPG-L/I automatic backwash blowdown filter is a filter that can use low-quality water for industrial cooling, but also can be used in other processes requiring filtration. It has the function of flushing and removing impurities. One is installed in front of the other actuators of the heat exchanger, cleaning and removing impurities regularly. When normally, the steering valve is opened, and the flow is filtered through the filter cartridge and discharged from the outlet. When the steering valve closes and the blowdown valve opens, the water flow is forced from the inlet mesh of the filter cartridge to the outside of the filter cartridge. Most of the water flows out of the outlet. Some of the water flows out of the filter cartridge through the mesh of the impurity collection section into the inner of the filter cartridge. The backwashing occurs to the filter cartridge and the backwashing occurs to the outside of the filter cartridge. The impurity attached to the mesh hole is still discharged through the drain outlet.

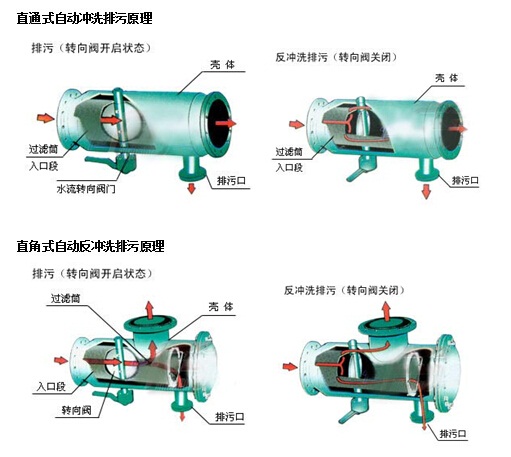

Working principle

1, job filtering

Normally, the steering valve is open. After passing through the filter, the fine particles and suspended solids in the water are deposited near the sewage outlet by inertia principle.

2. Flushing and blowdown

When normal flushing, the steering valve is open. When the amount of fine particles and suspended solids in the water trapped by the filter net reaches a certain level, the valve on the sewage outlet is opened, that is, the impurities adhering to the filter collection section are flushed until the discharge water is clear. Then close the valve on the sewage outlet to work normally.

3, backwash sewage

When backwashing, the water diversion valve is closed and the blowdown valve is opened. At this time, the water flow is forced to enter the sandwich between the outer side of the filter cartridge and the shell from the inlet mesh of the filter cartridge and flush the impurities adhering to the mesh from the outer side of the filter cartridge to clean the filter net. Because the steering valve is closed, the water flow through the recoil valve increases, and the backwash effect is good.

Main performance parameters

殼體材質	碳鋼	不銹鋼
濾框?yàn)V網材質	不銹鋼
密封件材質	耐油石棉、丁晴橡膠、聚四氟乙烯
工作溫度(℃)	-30～380	-80～450
公稱壓力(MPa)	0.6～5.0 (150Lb～600Lb)
過濾精度（目/in）	10-300

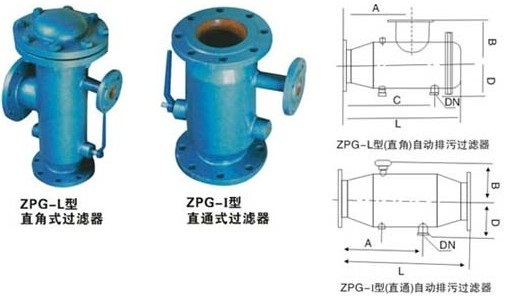

Main dimensions

ZPG- I straight through automatic backwash sewage filter

型號	L	A	B	D	排污口DN
ZPG-I-40	245	185	63	90	15
ZPG-I-50	255	190	70	100	15
ZPG-I-65	270	195	83	120	20
ZPG-I-80	320	232	96	140	25
ZPG-I-100	350	260	128	180	32
ZPG-I-125	438	326	162	200	40
ZPG-I-150	525	390	189	230	50
ZPG-I-200	700	520	220	280	65
ZPG-I-250	875	650	255	330	80
ZPG-I-300	1050	780	294	380	100
ZPG-I-350	1200	885	331	450	125
ZPG-I-400	1400	1040	377	480	150
ZPG-I-450	1550	1145	420	500	150
ZPG-I-500	1700	1250	462	580	150
ZPG-I-600	2000	1460	537	650	200
ZPG-I-700	2280	1720	607	700	200
ZPG-I-800	2500	1900	685	820	200
ZPG-I-900	2800	2180	785	880	200
ZPG-I-1000	3120	2470	860	920	250
ZPG-I-1100	3450	2780	915	960	250
ZPG-I-1200	3700	3000	965	1040	250
ZPG-I-1500	4470	3650	1220	1400	250

ZPG-L type right angle automatic backwash sewage filter

型號	L	A	B	C	D	排污口DN
ZPG-L-40	320	170	80	226	90	15*
ZPG-L-50	350	185	90	244	100	15*
ZPG-L-65	380	200	100	270	120	20*
ZPG-L-80	445	230	120	310	140	25*
ZPG-L-100	536	265	160	365	180	32*
ZPG-L-125	624	315	190	440	200	40
ZPG-L-150	728	375	220	520	230	50
ZPG-L-200	884	500	260	670	280	65
ZPG-L-250	1120	625	310	830	330	80
ZPG-L-300	1310	750	350	1000	380	100
ZPG-L-350	1514	875	410	1180	450	125
ZPG-L-400	1730	1000	470	1350	480	150
ZPG-L-450	1896	1125	510	1500	500	150
ZPG-L-500	2080	1250	550	1680	580	150
ZPG-L-600	2490	1500	650	2000	650	200
ZPG-L-700	2680	1600	680	2150	700	200
ZPG-L-800	2880	1750	700	2300	820	200
ZPG-L-900	3150	1850	800	2480	880	200
ZPG-L-1000	3370	2000	900	2675	920	250
ZPG-L-1100	3610	2100	1000	2900	960	250
ZPG-L-1200	3850	2250	1100	3050	1040	250
ZPG-L-1500	4700	2800	1200	3800	1400	250

Note:

A. all connection flange dimensions are manufactured by GB4216-84.

B. * * is threaded connection.

C. can customize non standard flow products and high pressure products according to users' needs.
