ZSQP Pneumatic Piston Cut-off Valve (referred to as Piston Cut-off Valve) is the executive unit of the pneumatic unit combination instrument. It receives signals from the regulator to control the shut-off and switching-on or switching-off of the fluid in the process pipeline. The product has the advantages of large operating force, novel valve body design, small flow resistance, large rated flow coefficient, large allowable pressure difference and excellent sealing performance. Therefore, it is widely used in automatic control and remote control system of production process in petroleum, chemical industry, metallurgy, electric power, light textile and other industrial departments.


Characteristic

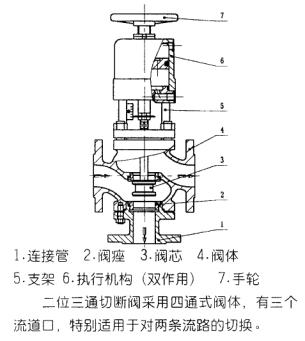

Pneumatic piston cut-off valve is composed of two parts: pneumatic piston actuator and straight stroke regulating mechanism, and the middle part is connected by bracket. According to the type of regulating mechanism, the pneumatic piston cut-off valve can be divided into three types: through single-seat cut-off valve (ZSQP), through sleeve cut-off valve (ZSQM) and two-position three-way cut-off valve (ZSQN). Pneumatic piston actuator has two functions: single acting (spring reset) and double acting (double intake). Single-acting actuator is adopted, and the whole machine can be divided into air-closing type (horizontal pipeline connection) and air-opening type (horizontal pipeline disconnection). Pneumatic piston cut-off valve has hard seal and soft seal, which are suitable for different temperatures and pressures.


When the signal pressure is zero, the spool is in the initial state (normally open or normally closed) due to the pre-tightening force of the spring (only one action). When the actuator receives the signal pressure (0.4-0.6 MPa), the piston produces thrust, compresses the spring, and drives the push rod, valve body and valve core to the limit position, so that the valve is fully open or closed. It can control the connection of medium, cut off or switch between pipelines. With the two position three way solenoid valve, the piston type shut-off valve is controlled more conveniently and simply.


Connection size and standard of pneumatic piston cut-off valve


Flange standard: cast iron flange GB4216-84 cast steel flange GB9113-88, JB/T79 - 94


Flange sealing face type: PN16 is convex PN40 and 64 is concave convex, and valve body is concave.


Structure length: GB12221-89


Actuator signal interface: M10X1


* valve flange and flange end distance can be manufactured according to user specified standards.


Such as: ANSI, JIS, DIN and other standards.

Pneumatic piston shut-off valve main parts material


Valve body: HT200, ZG230~450 or above material lining.


Diaphragm: Ding Quan, natural rubber, polytetrafluoroethylene ripple.


Film: NBR reinforced polyester fabric.


Spring: 60S12Mn valve body lining material and scope of application


Main technical parameters of pneumatic piston cut-off valve


公稱通徑 DN(mm)
20
25
32
40
50
65
80
100
額定流量系數 Kv
7
11
20
30
48
75
120
190
額定行程 (mm)
8
12
20
25
氣缸直徑 (mm)
75
100
150
允許泄漏量
硬密封 (1/h)
單座、三通： 1.2X10 -7 X 閥額定容量
套筒： 5X10 -6 X 閥額定容量
軟密封
VI 級
工作溫度 ( ℃ )
-20 ～ 200 -40 ～ 450
公稱壓力 PN (MPa)
1.6 4.0 6.4
允許壓差
(MPa)
ZSQP
單作用
1.16
0.66
0.38
0.6
0.39
0.47
0.31
0.20
雙作用
6.4
5.0
2.8
3.3
2.13
2.71
1.75
1.11
ZSQM
單作用
公稱壓力
雙作用
ZSQN
單作用
0.89
0.57
0.35
0.56
0.36
0.45
0.30
0.20
雙作用
5.2
3.22
2.03
2.27
1.46
2.00
1.32
0.85
信號壓力 (kPa)
0 或 400 ～ 600


The executive agencies listed in the table are of standard configuration and can be selected according to process requirements.

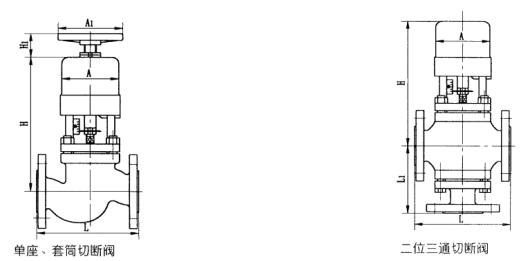

Main dimensions of pneumatic piston cut-off valve


公稱通徑 DN
L
A
H
L 1
H 1
A 1
重量 (Kg)
信號接頭內螺紋
20
150
130
220
80
115
100
-
M10X1
25
160
130
220
80
120
100
-
32
180
150
235
80
130
100
-
40
200
150
235
95
138
120
-
50
230
150
240
95
155
120
-
65
290
280
250
105
178
160
-
80
310
280
260
105
207
160
-
100
350
280
265
105
222
160
-
