GID型系列電動高真空蝶閥采用回轉型電動、電子調節式閥門驅動裝置，可以通過外接電源的切換(用手動轉位開關或電腦控制)或外部輸入信號，來實現閥門開、關或中間位置的控制，從而達到接通或切斷真空管路中氣流的目的。
GID型系列電動高真空蝶閥適用的工作介質為空氣和非腐蝕性氣體。
主要技術參數
適用范圍(Pa)
105～1.3x10-5
閥門漏率(Pa.L/S)
≤1.3x10-6
開閉時間(S)
DN≤63 20；80≤DN≤200 30； DN≥250 48
介質溫度（℃）
-25～+80(密封材料為丁腈橡膠)
-30～+150(密封材料為氟橡膠)
法蘭標準
JB919
安裝位置
任意
控制電路
標準出廠：AC220V/50Hz開關型
特殊指定：AC380V；DC24V開關型
4～20mA DC
信號反饋
標準出廠：帶無源觸點型
特殊指定：4～20mA DC調節型

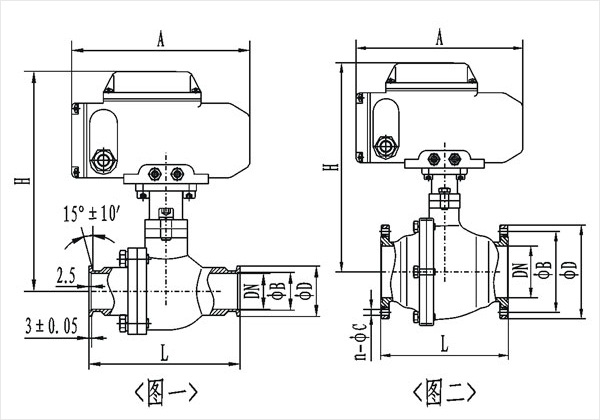

主要外形尺寸
型號
通徑(DN)
ΦD
ΦB
H
A
L
W
n-ΦC
GID-25
25
70
55
177
22
160
113
4-Φ7
GID-32
32
78
64
182
GID-40
40
85
70
186
GID-63
63
130
110
229
26
4-Φ9
GID-80
80
145
125
273
30
196
121
GID-100
100
170
145
285
4-Φ12
GID-125
125
195
170
299
35
GID-150
150
220
195
368
255
158
8-Φ12
GID-200
200
275
250
394
40
GID-250
250
330
300
426
45
GID-300
300
380
350
449
55
8-Φ14
GID-400
400
500
465
538
60
310
207
8-Φ18
