CC-A ultra high vacuum plug valve

CC-A ultra high vacuum plug valve
  • sell：021-32051999
  • sell：021-32050777
  • fax：021-66099555

Details

  • Product Introduction
  • Service Promise
  • Ordering Process

CC-A Series Ultra-high Vacuum Plug-in Valve is a vacuum valve which is driven by a screw by a handle to open and close the valve plate. It closes by spring force and then withdraws after opening. Valves are suitable for connecting or cutting airflow in ultra high vacuum systems. The use of high vacuum system to connect or cut off airflow.

The CC-A type of ultra-high vacuum plug valve is suitable for cleaning air and non corrosive gases.

Main technical performance

適用范圍(Pa)
105～1.3x10-7
閥門漏率(Pa.L/S)
DN≤200為≤1.3x10-7
DN≥250為≤6.7x10-7
閥門烘烤溫度（℃）
≤150(除傳動裝置外)
開閥時閥板兩側(cè)壓力差(Pa)
≤2.7x103
閥板密封件
氟橡膠
軸封處密封件
不銹鋼波紋管

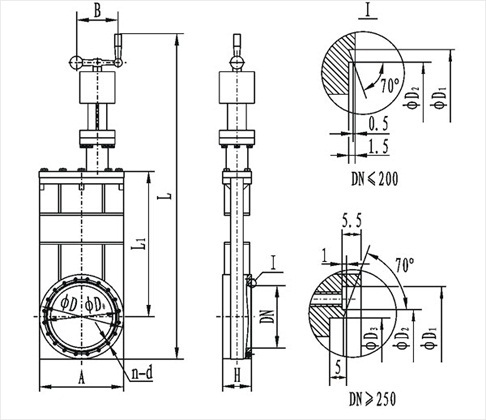

Main shape connection dimensions
型號
通徑(DN)
ΦD
ΦD0
ΦD1
ΦD2
ΦD3
H
A
n-d
L
L1
B
法蘭標準
CC-50A
50
89
72.4
61.6
55.6
/
60
91
8-M8
493
165
80
GB/T6071
CC-63A
63
114
92.1
82.6
76.6
/
65
105
8-M8
547
190
80
CC-80A
80
130
110
99
93
/
65
130
16-M8
607
225
80
CC-100A
100
152
130.2
120.7
114.7
/
70
152
16-M8
660
267
100
CC-150A
150
202
181
171.5
165.5
/
70
202
20-M8
784
350
100
CC-200A
200
254
231.8
222.3
216.6
/
80
251
24-M8
882
426
100
CC-250A
250
314
288
308
275
271
85
300
24-M10
1146
570
130
JB5278
CC-300A
300
365
338
353
323
318
90
352
32-M10
1206
613
130
/
